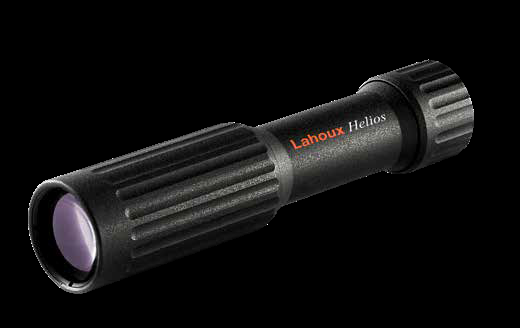

Lahoux Helios
The new Lahoux Helios IR illuminator is a LED lighting tool and can be used to support a night vision attachment with very little residual light. The observation area is illuminated with the illuminator in a light that is invisible to the human eye at a wavelength of 855 nm. The brightness is infinitely dimmable, the angle of the light cone is changeable.
Powerful - but eye-safe!
The Lahoux Helios IR Illuminator is one of the most powerful IR LED Illuminators on the market. The effective illumination range depends on various influencing factors and can be up to 2000 m. It is eye-safe! Some offered IR Illuminators on the market are not eye-safe and can damage the eyes of humans and animals by direct or indirect illumination.
At short distances, a glimpse into an IR Illuminator should be avoided!
The following models are available:
- Lahoux Helios 945

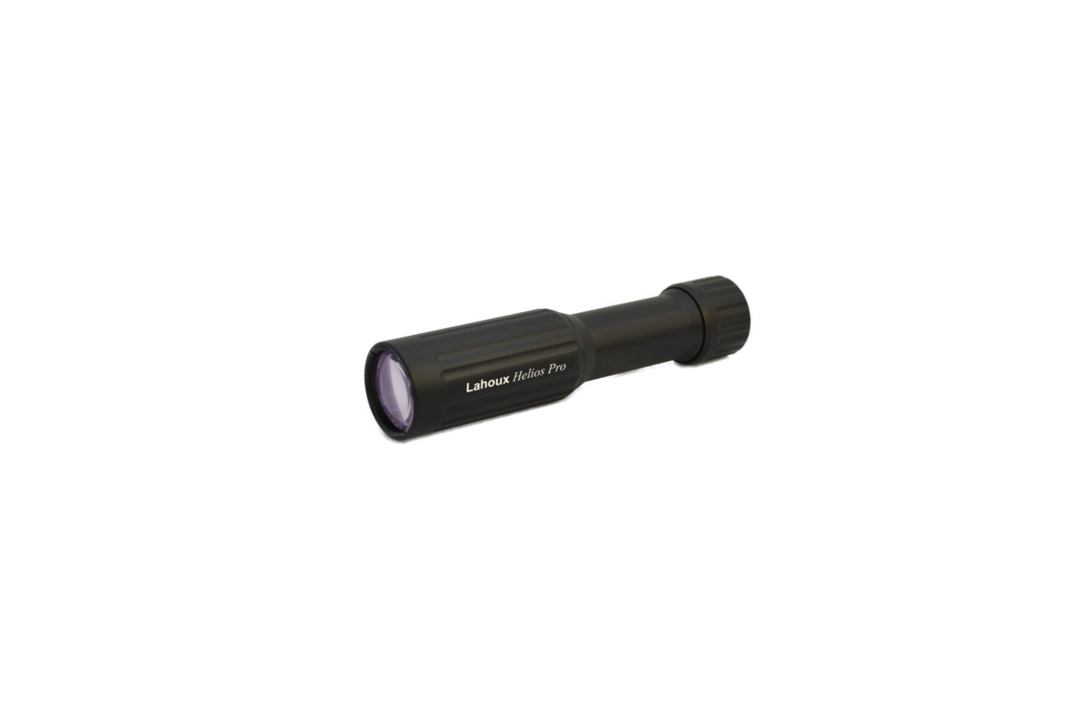

- Lahoux Helios Pro
Specifications
| |
Standard |
Pro |
945 |
| Radiation source |
Infrared HPC LED |
| Wavelength |
855nm |
945nm |
| Power maximum |
600mW |
2000mW |
1800mW |
| Illumination range |
500m |
1000m |
200m* |
| Stepless dimming |
Yes |
| Lens type |
Aspheric glass |
| Angle of illumination |
1 to 13 ° |
| Field of illumination |
2 to 23m at 100m |
| Power source |
Rechargable 18650 Li-ion battery |
| Battery lifetime |
18-24h |
4-10h |
| Mounting diameter |
Ø1” (25.4 mm) |
| Dimensions |
Ø34 × 153 mm |
| Weight |
175 g |
| Encapsulation |
IP67 |
| Operating temperature |
−40 – +50 °C |
| *When used with a generation 2+ residual light amplifier |
Delivery
- Lahoux Helios Pro IR illuminator incl. Dimmer
- including 18650 battery with charger
- Mounting bracket (assembly) not included. Can be ordered separately.
