High light gathering power allows using the sight in any time of the day. Distinctive feature of the sight – ability of precise long range shooting small targets.
- Optimal model line
- Wide field of view
- High shock resistance
- Reinforced body (installation of front attachments)
- Various illuminated reticles
- Long eye relief
- Turrets resettable to zero
- Nitrogen-filled
- Full water and dust resistance
Main Features
Waterproof
The Jaeger sights can be operated in precipitation of any intensity, e.g. heavy shower or snowfall (the unit has IPX7 degree of protection according to the IEC 60529).
Nitrogen-purged optical path
Nitrogen-filled optical channel protects inner optical parts and body of the sight against fogging, often caused by rapid temperature change.
Reinforced body
Jaeger sights are designed with the possibility of mounting on their objective lenses night vision and thermal clip on systems.
High shock resistance
Sights have high shock and vibration resistance. Jaeger of any modification can be installed on large-caliber rifled and smooth bore weapons and can be used with spring-piston air guns.
Wide field of view
Taking into account angular field of view Jaeger sights occupy a decent place among similar models represented on the market. Apart from a good visibility design of the eyepiece ensures a quick visual image capture when rifle is raised.
Resettable to zero turrets
Design of elevation and windage turrets allows almost instantaneously with one click reset turrets to zero after the sight was zeroed.

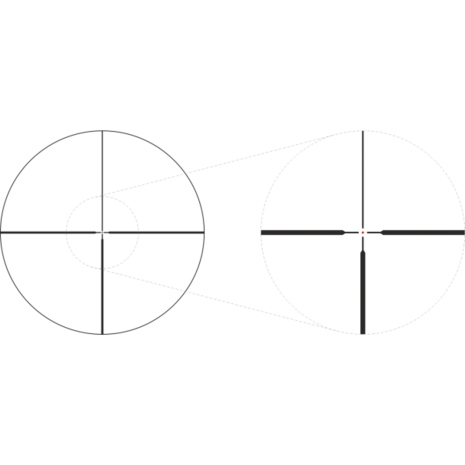

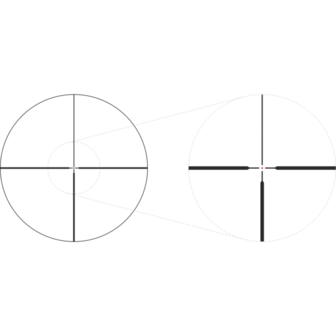

Illuminated Reticle
Reticles of Jaeger are situated in the second (rear) focal plane – regardless of selected magnification reticle stays thin and does not cover the target. The center of the reticles is illuminated. Illumination brightness adjustment wheel has intermediary “zero” steps which allows rapid switching off of the illumination as well as return to the previous position of brightness. Intensity of the illumination varies widely, there is a mode for using the sight with attached from the rear night vision device.
Specifications
Optics
Magnification, x: 3-12
Lens diameter, mm: 56
Field of View,°: 6.9 -1.7
Field of View, m@100m: 12 - 3
Eye Relief, mm: 90
Exit Pupil, mm: 16 - 3x / 5 - 12x
Diopter adjustment, dptr.: +/- 2,5
Reticle
Windage & Elevation, 1 click, mm@100m: 7,25 (1/4 МОА)
Max. windage/elevation adjustment range, mm@100m: 2030(280 clicks) / 2030 (280 clicks)
Connections and Compatibilities
Mounting diameter, mm: 30
Shock-proofness, E0, joules (when used with rifled gun): 7000
Environmental Characteristics
Operating Temperature,°С: -30 ... +60
Level of Protection (acc. to IEC 60529): IPX7
Nitrogen Purged, yes/no: yes
Weight & Size
Lens Material: Glass
Body Material: Aluminum Alloy
Length, mm: 295
Weight (without batteries), g: 590
