Wist je dat???
De Swarovski TM35+ de eerste warmtebeeld voorzetkijker is die niet hoeft worden ingeschoten. Plaats de TM35+ met adapter op uw richtkijker en schiet met uw standaard richtkijker kruis.
OBSERVE IN COMFORT
Simply see more
With its large field of view, the tM 35+ thermal imaging device allows you to quickly find and identify game when hunting at twilight, at night, and in poor light conditions.
![SWAROVSKI OPTIK thermal imaging tM 35+](https://images.ctfassets.net/pvkenuwtinkd/SZN8iy99iBkTGvRxElO5U/fbfe118ac96a3a44e4dd0c8bb8469d63/K24_TX_Encounter_Anthering_DSC9497_black_hot_RGB.jpg?q=80&w=600)
2 IN 1
Identify and take aim
The lightweight, compact, and ergonomic tM 35+ sits comfortably in your hand when observing. It can also be used as a clip-on device and, when used in combination with SWAROVSKI OPTIK rifle scopes, it guarantees a 100% reliable point of impact without the need to sight in.
![SWAROVSKI OPTIK thermal imaging tM 35+](https://images.ctfassets.net/pvkenuwtinkd/6QOPiuPA25XodbqgzbwZtX/a56e9acc5b229dc8d7a4b73df5bbf400/K24_tM_35__B1075168_CMYK.jpg?q=80&w=600)
EASY TO USE
Ready when you are
A key benefit at night: thanks to the SWAROLIGHT automatic power on/off, intelligent brightness adjustment, and long battery life, the tM 35+ is instantly ready for use at any time.
The night in your sights
The tM 35+ allows you to track and observe game even at long distances. As an observation device, it impresses with its large field of view and 2x magnification. Making sure you don’t miss any details in darkness or adverse weather.
![SWAROVSKI OPTIK thermal imaging tM 35+](https://images.ctfassets.net/pvkenuwtinkd/52YgHlrILXkLCKr8JpUtiE/0a2ebafeeba90a13588ba6c4905f632b/K24_tM_35__B1074704_CMYK.jpg?q=80&w=600)
Clear focus
Optimum image display

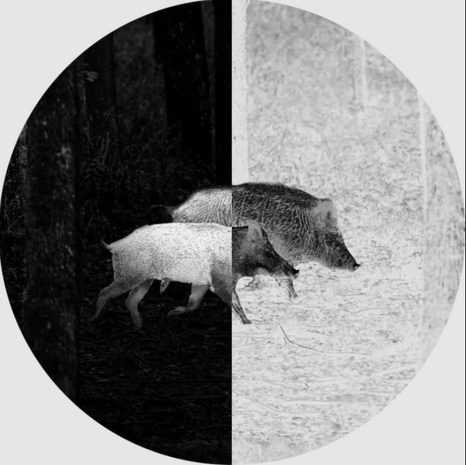

The tM 35+ displays a pleasantly harmonious and jerk-free thermal image – ideal for your adventures in the dark. Low latency keeps the time delay in the display to a minimum. This allows you to view events precisely as they happen.
The intelligent brightness adjustment automatically adapts the display to the prevailing light conditions. This avoids dazzling and the resulting temporary impairment of vision.
![SO tM 35 Waermebild Ansichten Kreis RGB lowRes3](https://images.ctfassets.net/pvkenuwtinkd/3RbrtR2jKlCV4sx3atr2hh/3fd2dc170911f1d92675ac29ef4ff7cc/SO_tM_35_Waermebild_Ansichten_Kreis_RGB_lowRes3.png?q=80&w=600)
A powerful combination
tMA(+)

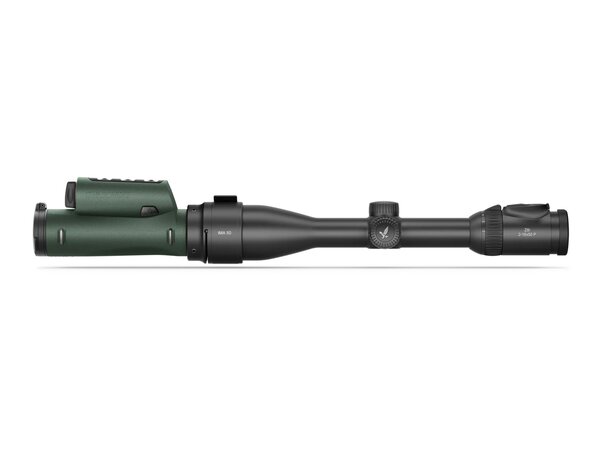

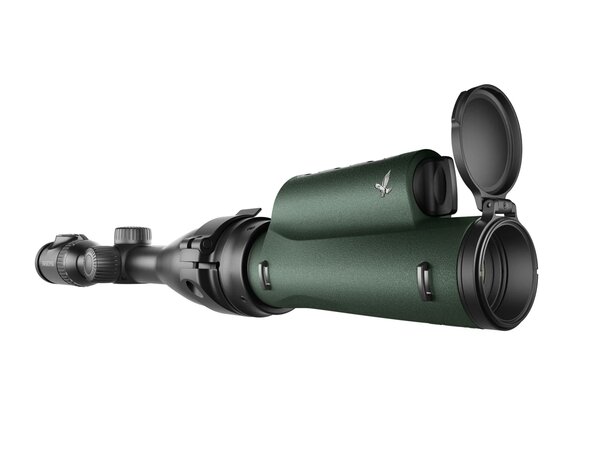

The tMA(+) thermal monocular adapter allows you to very easily convert your thermal imaging device from a hand-held device “to a clip-on version. Together with your SWAROVSKI OPTIK rifle scope, it therefore makes a powerful combination that requires no sighting in. Discover the compatible tMA(+) thermal monocular adapter for your rifle scope.
Technical specifications
OBJECTIVE
Field of view:21.6x17.4 m/100m
Field of view with eye glasses (%): 100 %
Exit pupil distance (4x magnification): 21 mm
Optical magnification: 1x
Digital magnification: 2x
Objective lens: 35 mm/f1.0
SIZE & WEIGHT
Length in mm.: 170 mm
Width in mm.: 54 mm
Height in mm.: 80 mm
Weight: 495 g
Connection thread: M44x0.75
DIGITAL
Refresh rate (Hz): 60Hz
Screen type: AMOLED
Screen resolution (pixels): 2560x2048
Sensor type: Uncooled VOx microbolometer
Sensor resolution (pixels):640x512
Pixel size (µm): 12
Start up time (s): 3 sec
BATTERY
Battery: Li-lon 3000 mAh
Battery operating time during normal / maximum operation: 6,5 h
ENVIRONMENT & CONDITIONS
Functional temperature: -20 to +50 °C
Storage temperature: -30 to +70 °C
IP protection class: IP68
Accessoires
Swarovski RB tM 35 accu
Deze zwarte Swarovski RB tM 35 accu is een Li-Ion 3000 mAh accu en is speciaal ontworpen voor de Swarovski tM35+. U heeft met deze accu ongeveer 7 uur extra aan gebruikerstijd.
Afmetingen: 92x28x28 (LxBxH)
Gewicht: 66 gram
Package Contents
- RB tM 35 rechargeable battery
- RBC battery charger
- Field bag
- Winged eyecup
- Carrying strap
- Hand strap
- Eyepiece cover

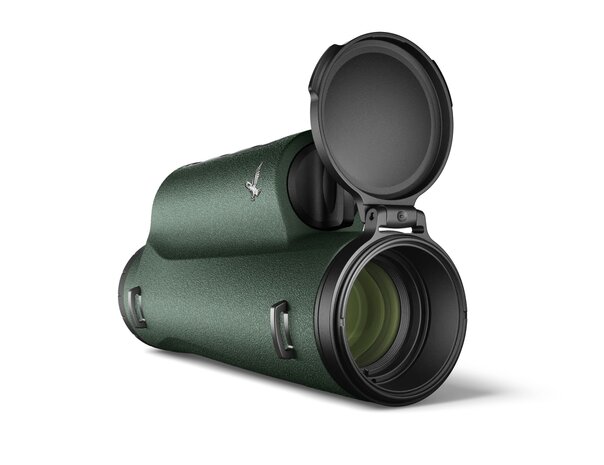

- Integrated objective lens cover
Accessoires
Wil je de Rusan Q-R ARM52 of Smartclip AS adapter op de Swarovski TM35.2 koppelen, dan is dat mogelijk met deze tusen ring:
