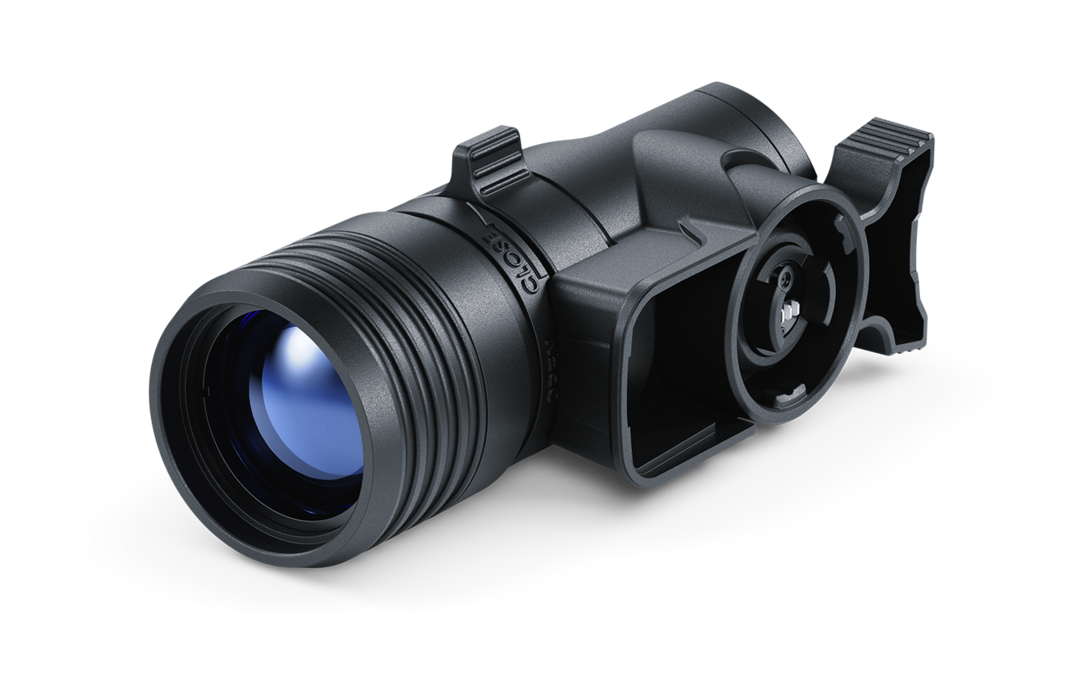

Attachable and interchangeable Pulsar Ultra-X850S/-X940S Infrared Illuminators are designed for use with Digisight Ultra N450/ N455, Digisight Ultra N450/N455 LRF digital riflescopes and other compatible Pulsar digital devices.
The IR Illuminators provide additional infrared (IR) illumination during observation with night vision devices in low light conditions (no moon, night, thick cloud etc.) and ensure across the whole field of view.
The design of the illuminator provides the ability to adjust the position of the light spot in the field of view.
Pulsar Ultra-X940S operates in an invisible range providing covert observation.
To use with:
- Digisight Ultra N450 / N455
- Digisight Ultra N450 / N455 LRF
- Forward F455 / F455S
Specification
Infrared Illuminator
Emitter: LED
IR wavelength, nm: 940 (linvisible)
IR Optical power, mW: up to 700
IR spot position adjustment: Yes
Degree of protection, IP code (IEC60529): IPX7
Operating temperature range, °Đˇ: -25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules: 6000
Shock resistance on the smooth-bore rifles, caliber: 12
Mount, type: NV Device IR Illuminator mounting port
Body material: Metal & Plastic
Dimensions, mm: 108x45x54
Weight, kg: 0.142
Package Contents
- IR illuminator
- Pin protective cover
- Carrying case
- Operating manual
