PULSAR KRYPTON 2 XQ35 Thermal Imaging Front Attachment and Hand Scope
Versatile modular design

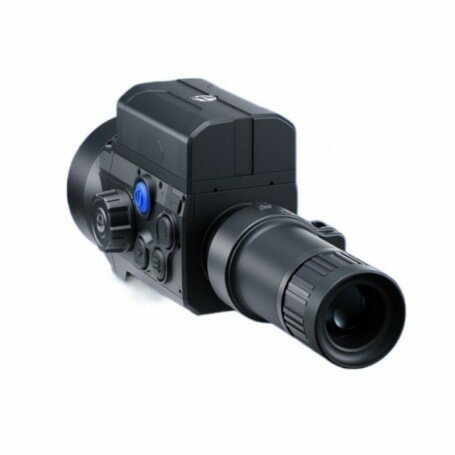

The Krypron 2 thermal imager is a combination of a compact thermal imaging module and a Pulsar 3x20B quick-release monocular, that can be used as an eyepiece. With one sweep the hunter gets a three times magnification spotting scope for natural daytime observation and a thermal imaging unit compatible with monocular type daytime optical devices. The Krypron 2 thermal imaging module docks with daytime optics using a special PSP-B adaptor, converting the day optic into a thermal imaging device. A quick-release adaptor means that the Krypton 2 can be removed from, and re-installed to, a daytime spotting scope or binocular in seconds, while the precise positioning mechanism allows for the central alignment of the thermal image within the daytime optics field of view.
User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

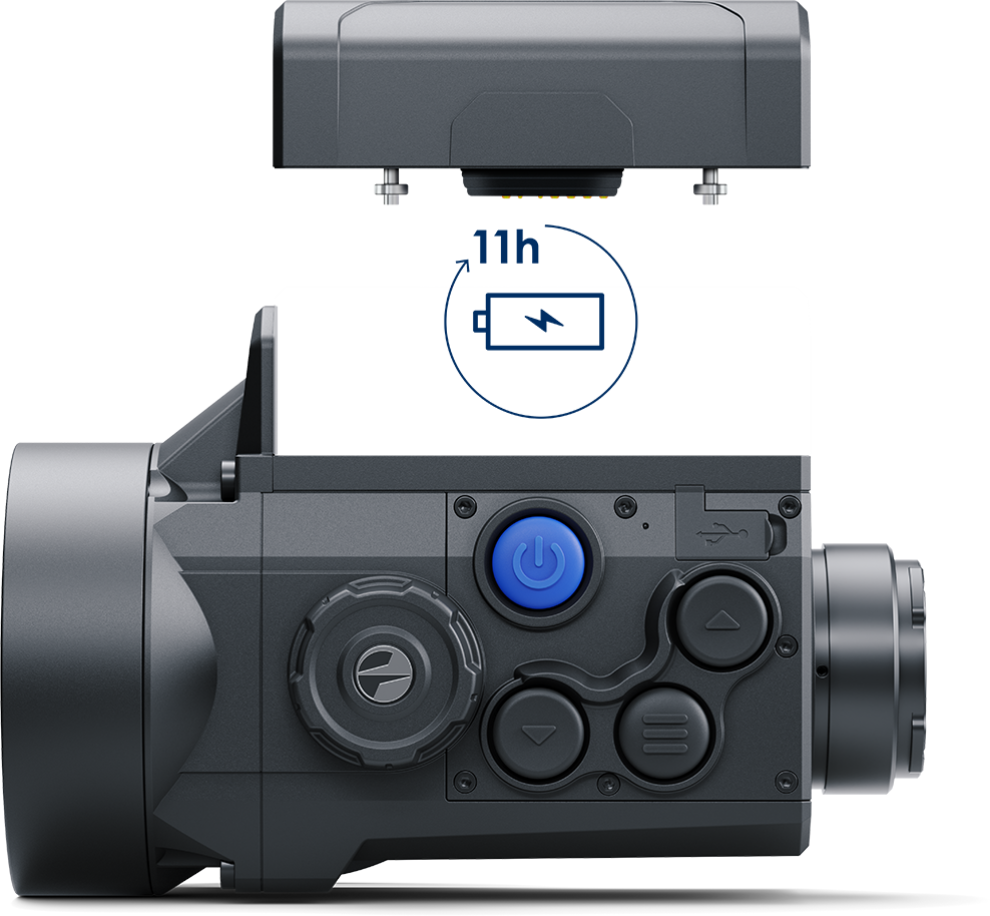

Supreme energy performance. Up to 11 hours of operation on single battery charge
Quick-change rechargeable Li-Ion battery pack IPS7 provides enough power for up to 11 hours of non-stop operation. On one battery pack the unit can run the whole night without the need to be replaced. Quick-release and wireless design, long operating time are the major highlights of this power system.
Compact and well-balanced
When hunting, every extra gram of equipment counts. Krypton 2 is easy and comfortable to use. With its short length, light-weight design and uniform weight distribution, the Krypton 2 has minimal impact on the balance when mounted on the lens of an optical riflescope or spotting scope, while the Krypton 2 controls are easy to reach.
Stream Vision 2. Wi-Fi integration with iOS and Android devices
Built-in Wi-Fi connects the Krypton 2 to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.
Rugged magnesium alloy housing
A rugged, lightweight magnesium alloy housing has high structural strength, protecting the Krypton 2 from shock and vibration loads, it is resistant to external mechanical, temperature and climatic effects. The magnesium alloy housing effectively removes and dissipates heat from the electronic components of the thermal imager, increasing the operational stability of the device.

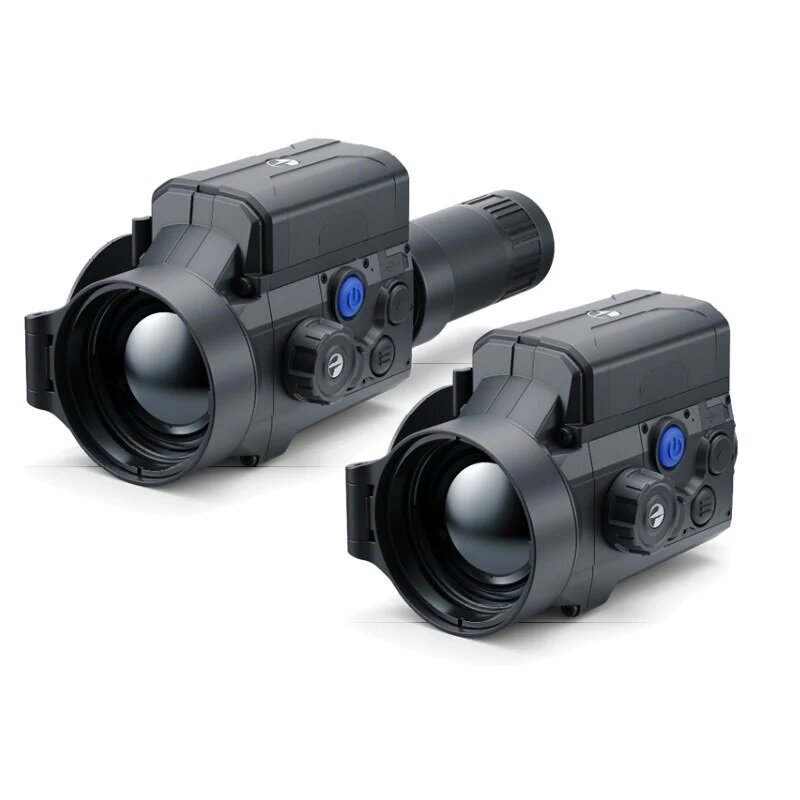

Choose model you need!
High thermal sensor sensitivity
384x288 pixel @ 17 thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging.
Compact and light-weight
Light weight is important when attachment is mounted in front of the rifle optics and ads to total weight of assembly. Compact size makes handling and storage of the unit more convenient.
Quick-release PSP-B bayonet adaptors with precise attachment’s screen positioning mechanism
The thermal imaging attachment is mounted on the adapter using a four-point bayonet. The bayonet coupling is highly reliable and quick and easy to attach. The attachment is removed from one adapter and installed on another with no need for special tools, allowing you to quickly and easily turn various daytime optics in the hunter's arsenal into thermal imaging optics. The precise screen positioning mechanism enables the perfect alignment of the thermal or night vision image in the field of view of daylight optics for maximum viewing comfort.
And more:
Full-HD multicolour AMOLED display
The new FHD full-colour AMOLED display is characterized by high contrast, a wide dynamic range and energy savings. The fast response time ensures a clear and smooth image when observing in motion or in freezing conditions.
Adaptable user interface
A new feature for Pulsar thermal imaging attachments is the graphical user interface adaptation. The device menu and status bar positions are scaled by the user to a comfortable view when changing the magnification of the day riflescope in order to see the current information about the attachment status and operate with the menu in a significant range of magnifications.
Built-in photo and video recorder
The Krypton 2 has a built-in video recorder. The internal memory of Krypton 2 can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video.
Ergonomic Bluetooth remote control
The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control is characterized by excellent ergonomics − the buttons activate the most requested functions, while the device parameters of fine adjustment and menu navigation are provided by rotating or pressing the encoder. The design, size and positioning of the buttons and encoder are customized for use with both bare hands and gloved hands.
A selection of 8 colour palettes
A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
Fast aperture germanium lenses
Germanium F50/1.0 and F35/1.0 lenses feature high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Krypton 2 thermal attachments’ sensors is distinguished for its clarity and detailing.
Dual Wi-Fi waveband support 2.4 / 5 GHz
In Krypton 2 thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.
IPX7 submersion waterproof rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
Operation in extreme temperatures -25 to +50°C
Housing, power unit, optics and electronics of Krypton 2 are designed with regard to applications in wide range of temperatures. Krypton ensures reliable and effective performance in freezing cold up to -25°C.
Specifications
Main
Sensor: 384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens: F35 / 1.0
Magnification, x: -
Magnification in monocular mode / attachment mode, x: 3 / 20
Field of view (HxV), degrees / m@100m: 10.7Ń…8 / 18.7x14
Detection range, m: 1300
Sensor
Type: uncooled
Resolution, pixels: 384x288
Pixel pitch, µm: 17
NETD, mK: <25
Frame rate, Hz: 50
Optics
Objective lens: F35 / 1.0
Magnification, x: -
Magnification in monocular mode / attachment mode, x: 3 / 20
Field of view (HxV), degrees / m @ 100 m: 10.7Ń…8 / 18.7x14
Eye relief, mm: -
Recommended magnification of the day scope, x: up to 6
Display
Type: AMOLED
Resolution, pixels: 1920x1080
Range Performance
Detection range, m: 1300
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014: -
Wavelength, nm: -
Max. measuring range, m: -
Measurement accuracy, m: -
Video Recorder
Video / photo resolution, pixel: 912x688
Video / photo format: .mp4 / .jpg
Built-in memory, GB: 16
Built-in memory capacity: -
Wi-Fi
Wireless Protocol: Wi-Fi
Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz: 2.4 / 5
Bluetooth
Wireless Protocol: BLE 4.2
Wireless Standard: IEEE 802.15.1
Frequency, GHz: 2.4
Environmental Characteristics
Degree of protection, IP code (IEC60529): IPĐĄ7
Operating temperature range, °Đˇ: -25 – +50
Connections and Compatibilities
Mount, type: -
Remote control: Pulsar BT (included)
Supported Application: Stream Vision 2
Power Supply
Output voltage, V: 3.0 – 4.2
Battery type: IPS7 Li-Ion Battery Pack
Capacity, mAh: 6400
Operating time on battery pack (at t=22°C), h *: up to 11
External power supply, V: 5V, 9V (USB Type-C Power Delivery)
Weight & Size
Body material: Magnesium alloy
Dimensions, mm: 201x73x83 (with Pulsar 3x20B monocular)
Weight, kg: 0.4 (w/o battery) / 0.54 (with IPS7 battery)
Trade Data
SKU (Model #): 77374
