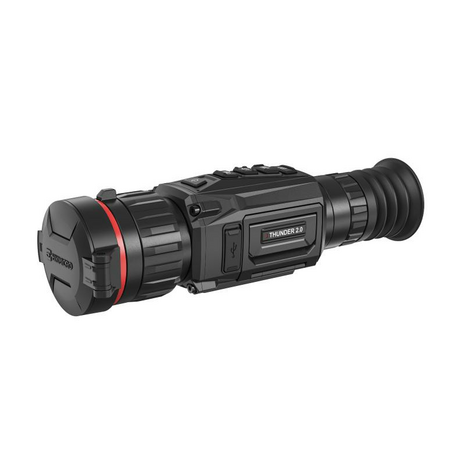

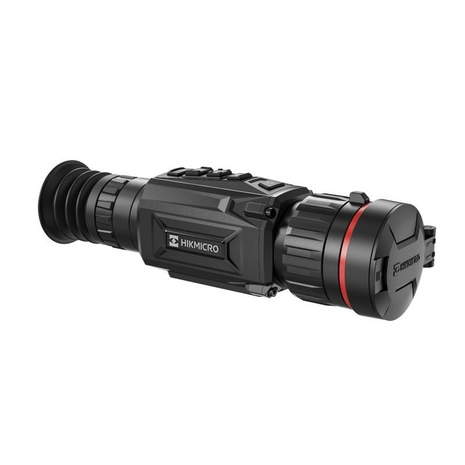

THUNDER ZOOM TQ60Z 2.0
The First 20mK Thermal Scope with Optical Zoom
Thermal Image Scope
Equipped with a 640 thermal detector, a 35 mm F0.9 and a 60 mm F1.1 lens given a wide FOV at 22 m and a magnification starting at 1.8x, HIKMICRO THUNDER ZOOM TQ60Z 2.0 is perfect for long-range hunting up to 3000 m.
With an extended operation time, whether in forest or in field, TQ60Z 2.0 can be your helpful companion.
- 640 × 512 resolution with 12 μm detector
- High sensitivity thermal module NETD < 20 mK (25°C, F# = 1.0)
- Dual FOV of 35 mm (F0.9) & 60 mm (F1.1) objective lenses
- 1024 × 768 resolution 0.39-inch OLED display
- Up to 6.5 hours of continuous operation
- Replaceable and rechargeable Li-ion battery packs
- High shock resistance up to 1000 g/0.4 ms
- Detection range up to 3000 m

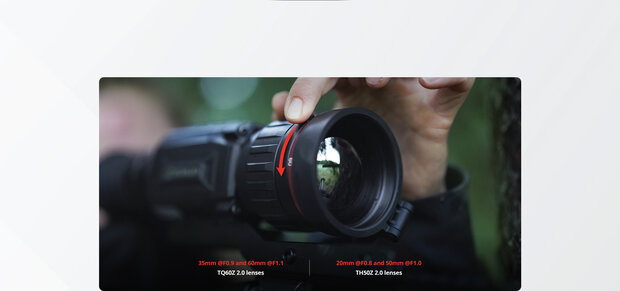

Large Aperture Enhances Identification Capability
The super large apertures of THUNDER ZOOM 2.0 guarantee improved temperature radiation capturing capability, no detail will be missed.

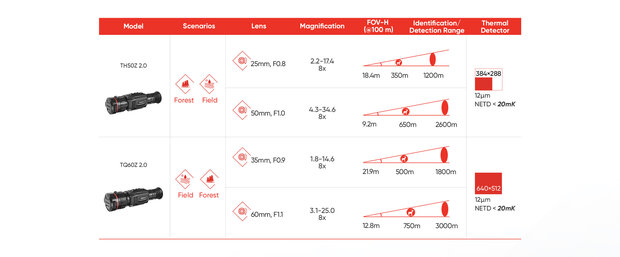

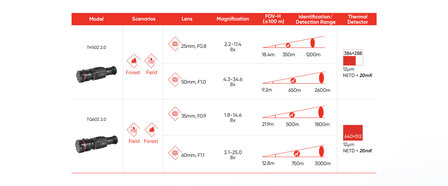

You can easily distinguish your target from the background with different lens combos.
Vivid, Informative and Layered Images
With an extremely high thermal sensitivity (NETD<20mK) detector combining a powerful thermal camera of up to 640x512 @12μm @ F0.9/F1.1, HIKMICRO thermal scope THUNDER ZOOM 2.0 ensures vivid, informative, and layered Images even under the slightest temperature differences.

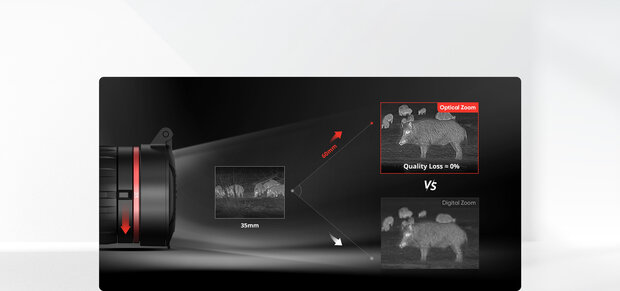

High-Quality Zoomed Image through Optical Zoom
Optical Zoom Maintains the High-Quality Images
HIKMICRO's THUNDER ZOOM 2.0 offers dual FOV by optical zoom technology.
Switching the device's two cameras, the image is zoomed with magnifications change and still maintains high quality.
This technology is the first to apply to a 20mK thermal scope.

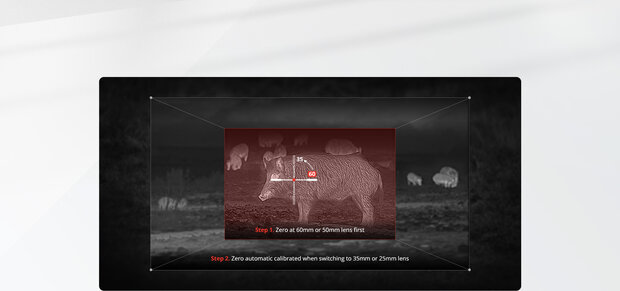

One-Time Zeroing
Zero under the small FOV lens first, then switch to the other lens, the zero position will be adjusted automatically. That is, you can zero one time for two lenses simultaneously.
Time and bullets saving!
Please note: You should zero in 50mm lens in TH50Z 2.0 or 60mm lens in TQ60Z 2.0

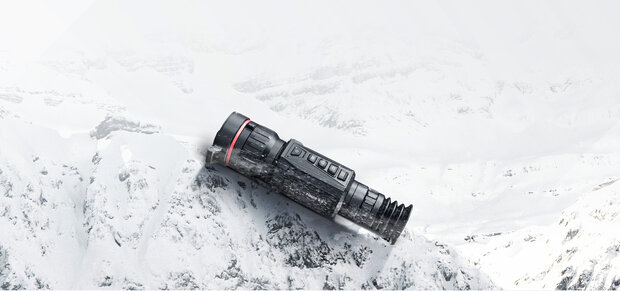

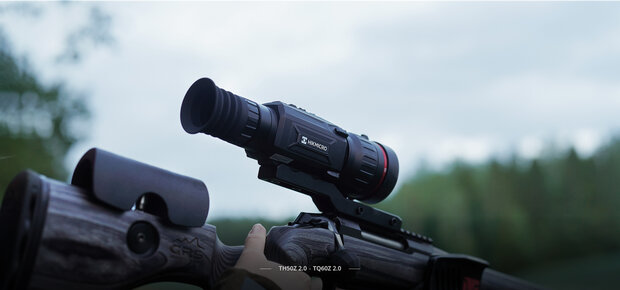

Magnesium Alloy and Lightweight Design Meet the Long-lasting Use
Magnesium alloy design; extreme working temperature from -30℃ to 55℃.
The improved stability of THUNDER ZOOM 2.0 meets the long-lasting use.

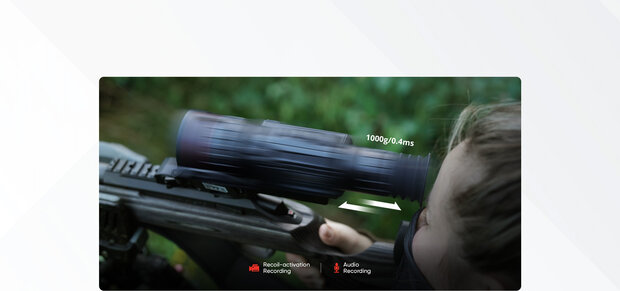

High Shock Resistance up to 1000g/0.4ms
HIKMICRO's thermal scope THUNDER ZOOM 2.0 has a high shock resistance even on larger calibers to .375 H&H, 12-gauge and 9.3 × 64..
Powerful Battery Performance, Game Non-stop
Long Operation Time, Support Direct Charging
Two new battery packs extend THUNDER ZOOM 2.0's working time to 13h+, and can be charged in the device directly. Besides, it performs superior to others, especially in low-temperature environment.
Improved User Interface, Easy-to-Use

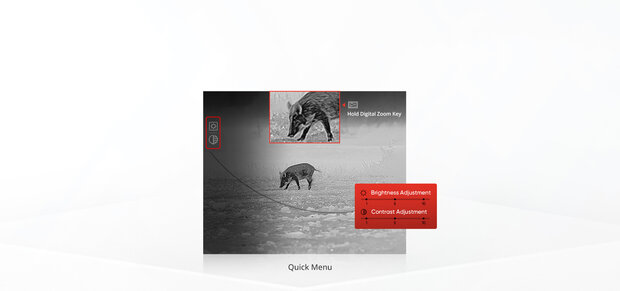

Quick Settings Bring Higher Efficiency in Hunting
1. Brightness and contrast adjustment in Quick Menu helps to conveniently recognize details of the image in a few clicks.
2. The PIP function is activated with ONE press (with Digital Zoom Key).

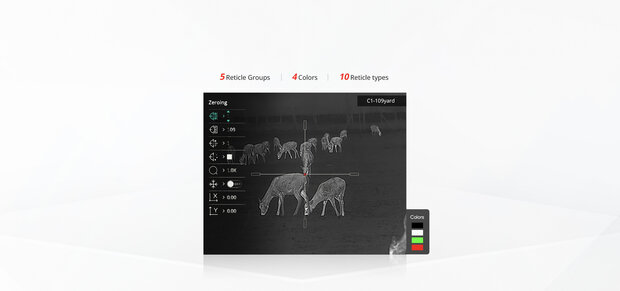

Multiple Reticle Profiles
5 reticle groups with 4 colors and 10 reticle types to choose, multiple profiles can be configured and saved in thermal scope THUNDER ZOOM 2.0 for a greater convenience.

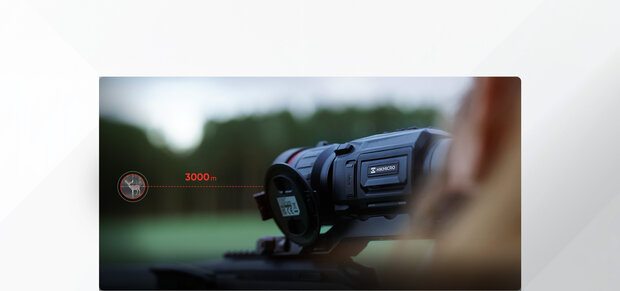

Long Detection Range
Equipped with an advanced imaging detector and superior lenses, 1.7m object can be detected by HIKMICRO thermal scope THUNDER ZOOM 2.0 from a distance up to 3000 meters, even in complete darkness.

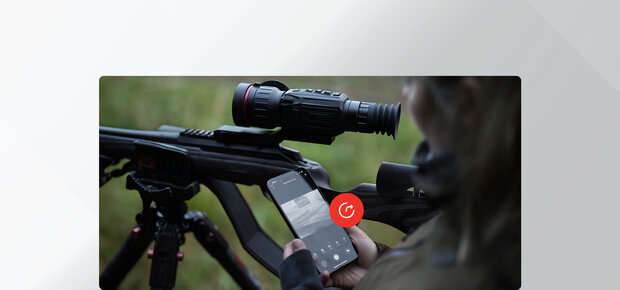

Sharing Your Exciting Moments
HIKMICRO Sight is a comprehensive APP designed for outdoor devices.
It's an all-in-one solution that supports preview, remote control, browse & download, sharing incredible moments and firmware updates.
Specification
Thermal Module
Image Sensor: Uncooled Focal Plane Arrays
Max. Resolution: 640x512
Frame Rate: 50Hz
Pixel Interval: 12μm
NETD: Less than 20mK (25 °C, F#=1.0)
Lens (focal length): 35mm, F0.9 AND 60mm, F1.1
Detection Range: 1800m / 3000m
Focus Mode: Optical Zoom, Focus Ring
Field of View(H × V), Degrees / m @100m: 12.5° ×10.0°/21.9m × 17.6m; 7.3° ×5.9°/12.8m × 10.2m
Min. Focusing Distance: 35mm: 7m / 60mm: 9m
Magnification: 1.8×-14.6x / 3.1x-25.0x (8x)
Image Display
Display: 1024x768, 0.39 inch, OLED
Brightness Adjustment: Yes
Palettes: Black hot, white hot, red hot, fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 6mm
Eye Relief: 45mm
Diopter (Range): -5D to 5D
Tone Adjustment: Cold, Warm
General
Protection level: IP67
Weight: 843g without Battery
Dimension: 254.4mm x 68.5mm x 80.6mm
Working Temperature: -30 °C to +55 °C (-22 °F to 131°F)
System
Record Video: On-board video recording
Capture Snapshot: Yes
Hotspot: Yes
Standby Mode: Yes
Storage: Built-in EMMC (16 GB)
PIP: Yes
DPC: Yes
Hot Track: Yes
Distance Measurement: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Max. Recoil: 1000g/0.4ms
Zeroing Profiles: 5
Power Supply
Battery Type: Replaceable and Rechargeable Li-ion Battery
Battery Operating Time: ≥6.5h (25 °C, with hotspot off)
Type-C Power Supply: 5V DC, 2 A, Supports External Power Supply
What's in the box
- 1x Hikmicro Thunder Zoom TQ60Z 2.0
- 1x Bag
- 2x Battery
- 1x Battery charger
- 1x Type-C cable
- 1x Quick start guide
- 1x Non-dust cloth
